Boosting PP Rope Production: How Garware Achieved 30% Higher Output with Meera's R-250 Ring Twisting Machine
In the fast-paced world of PP rope and baler twine manufacturing, efficiency, consistency, and durability are non-negotiable. As the global demand for higher denier, heavy-duty polypropylene yarns continues to rise, companies must rely on machines that meet stringent output requirements while ensuring superior product quality.
Recognizing this need, Garware Technical Fibres Ltd., a leader in industrial rope manufacturing, partnered with Meera Industries to adopt its advanced R-250 Ring Twisting Machine — a key step in revolutionizing their production line.
Key Takeaways
30% Higher Output: Garware boosted PP rope production by 30% after installing Meera's R-250 Ring Twister.
Built for Heavy Yarns: The machine handles high-denier PP yarns (30,000-36,000) at high speeds (up to 90 MPM) with exceptional stability.
Unmatched Consistency: Precision electronic controls ensure minimal TPM deviation, guaranteeing uniform tensile strength and yarn quality.
Optimized Operations: Features like dual-side creels and larger packages improve operator workflow and reduce machine downtime.
Proven ROI: The R-250 is a strategic investment that delivers a competitive edge through higher yield, lower maintenance, and integrated safety.
Why Ring Twisting Matters in PP Rope Production
Ring twisting plays a crucial role in the manufacturing of synthetic yarns such as PP (polypropylene) rope and baler twine. It enhances mechanical strength, abrasion resistance, and surface finish. For high-denier yarns, twist precision is vital to achieve the required tensile strength, knot-holdability, and UV resistance — essential for applications in agriculture, shipping, packaging, and construction.
Traditional twisting machines often struggle with high-speed production and heavy yarn loads. Meera’s R-250 Ring Twisting Machine, however, is engineered specifically to handle these demands with unmatched precision and performance.

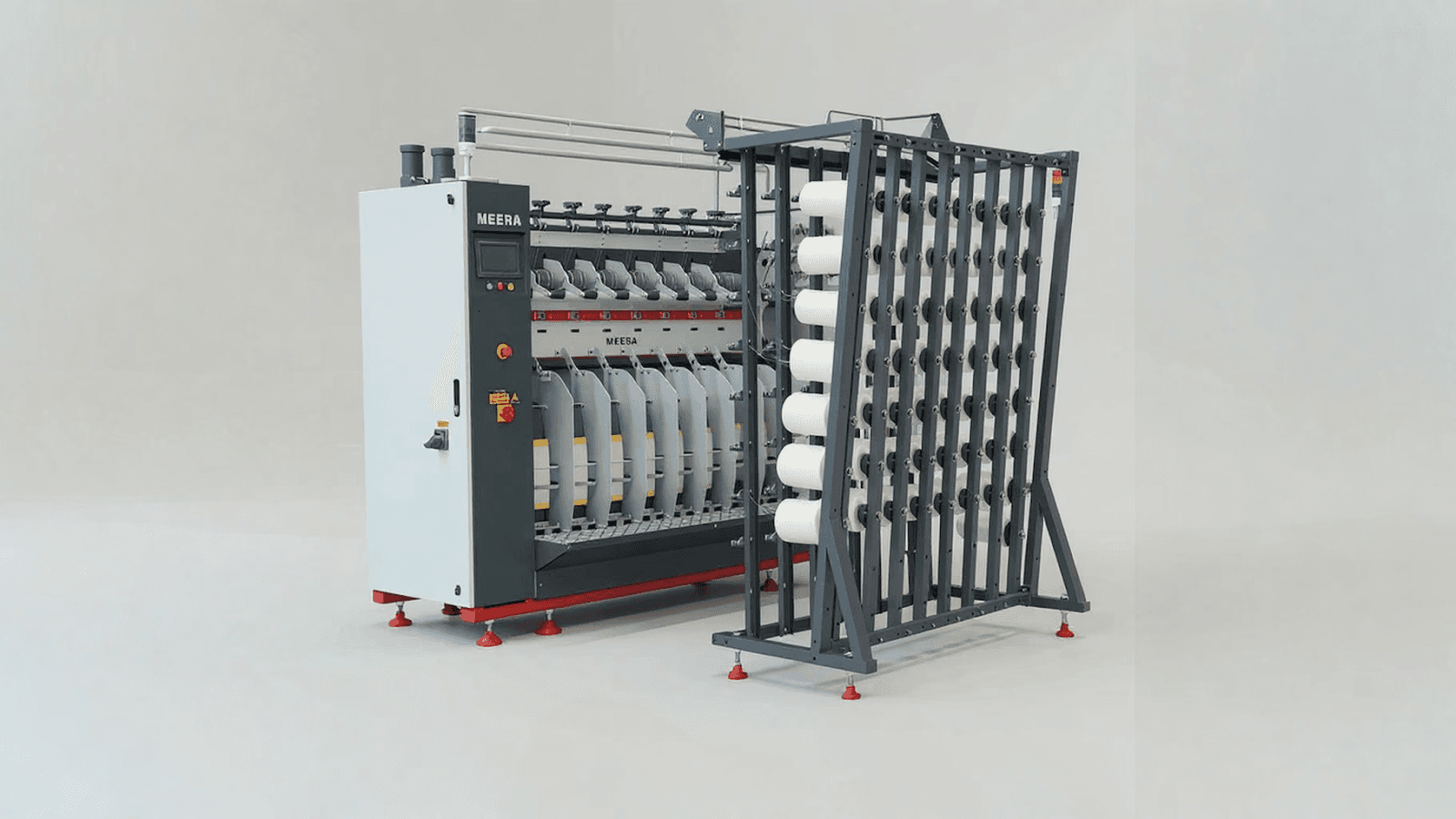

Inside Meera's R-250 Ring Twisting Machine: Technical Brilliance for Rope Production
The R-250 Ring Twister is more than a twisting machine — it’s a complete system designed for scalable, reliable, and ergonomic PP rope manufacturing.
Key Technical Features:
Spindle Speed: Up to 6000 RPM, supporting twist ranges from 20 TPM to 1500 TPM
Ring Diameter: 250 mm (optionally 280 mm) for enhanced operator accessibility
Spindle Drive: Central drive with inverter-grade motors and VFD-based electronic control
Creel Design: Modular dual-side loading with precision bobbin alignment and rotating yarn guide rollers
Electronic Controls: Touchscreen HMI with recipe management, real-time monitoring, and PLC logic safety
Cooling System: Motor-mounted external fans and VFD panel cooling filters
Safety: Magnetic locking ring guards, bottom oil guards, MPCBs, overload relays, and emergency auto-lift shutdown
Lubrication: Centralized lubrication with tray-based oil collection to avoid floor spills
These features enable the R-250 to handle high-denier PP yarns with maximum efficiency, making it ideal for baler twine and multi-filament rope applications.

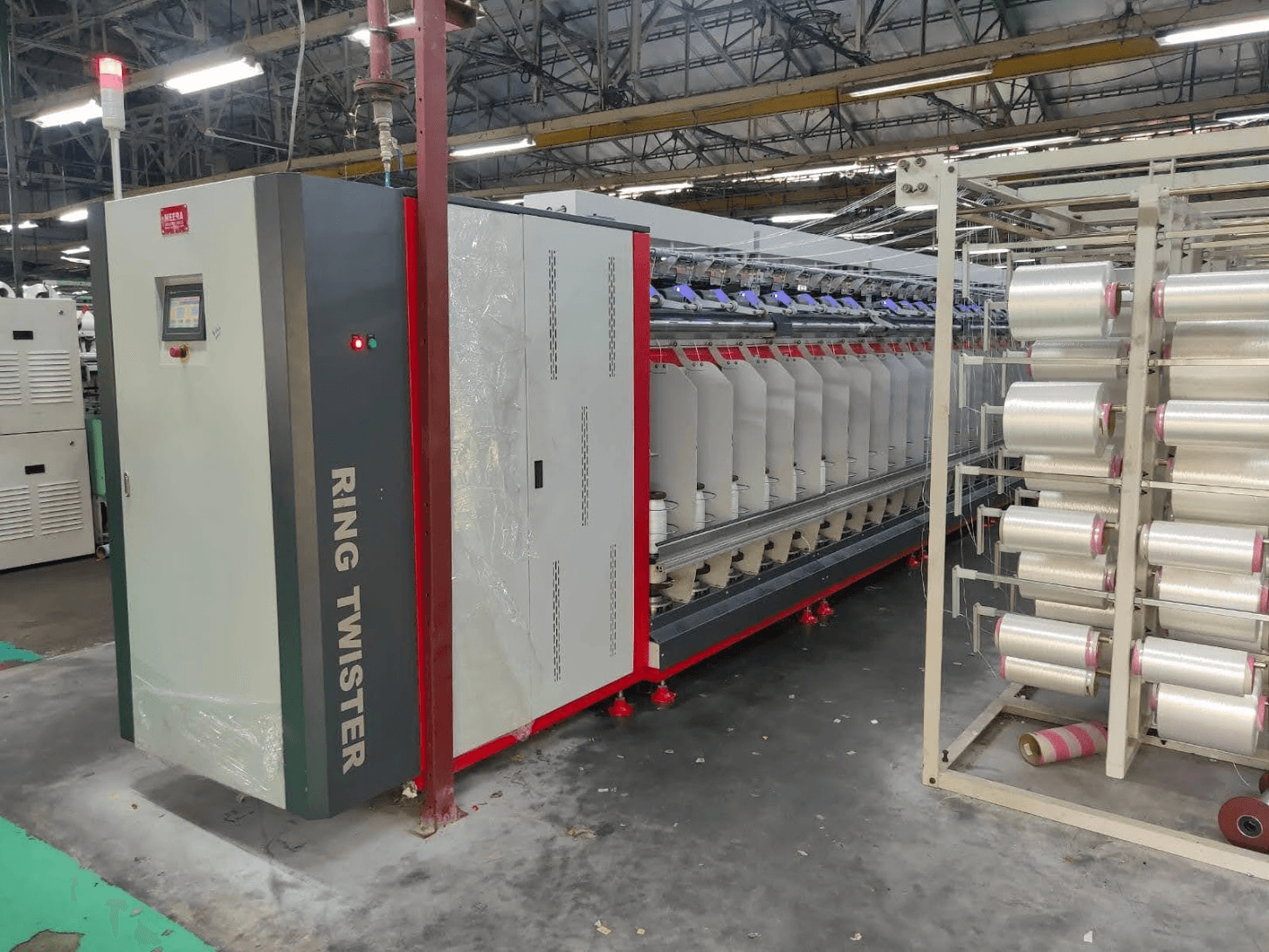

Garware's Experience: 30% Productivity Jump with Meera R-250
After installing the R-250, Garware observed immediate and quantifiable improvements across production metrics.
1. Production Efficiency
Operating at speeds of up to 90 MPM without overheating or excessive vibration, the R-250 significantly boosted throughput. Garware noted minimal deviation between the set and actual TPM values due to optimized traveler configurations, ensuring a higher yield per lot.
In real-time operations, Garware processed polypropylene yarns in the 30,000 to 36,000 denier range at 70–90 MPM, producing final packages weighing 8–10 kg. This resulted in longer continuous runs, reduced doffing frequency, and maximized output per spindle.
2. Yarn Quality and Consistency
The R-250 delivered consistent surface finish and tensile properties. Garware highlighted noticeable improvements in uniformity, aided by anti-patterning systems, ring-balloon control, and consistent yarn tension. Even during high-speed winding, package quality remained flawless.
3. Operator Ergonomics
Ergonomically designed features such as hinged machine covers, dual-side loading creels, intuitive threading paths, and noise reduction mechanisms helped improve operator comfort, reduce fatigue, and minimize handling errors.
4. Safety and Maintenance
Enhanced safety measures — including magnetic ring guards, emergency stop auto-lift, and color-coded wiring — contributed to a safer working environment. Robust electrical and mechanical systems led to lower breakdown rates and decreased overall maintenance costs.
Real Results: What the Garware Team Had to Say
“We’re thrilled with the R-250 from Meera. The productivity gains and yarn quality improvements have given us a competitive edge. It’s evident that Meera has engineered this machine with the rope and twine industry in mind. The after-sales support and customization were outstanding.”
— Senior Production Engineer, Garware Technical Fibres
Why More Manufacturers Are Choosing Meera’s R-250
Businesses in PP rope and baler twine production are increasingly adopting the R-250 for its unique advantages:
Consistency: Low variance in TPM and MPM across all shifts
Scalability: Modular design supports a wide range of deniers and yarn types
Energy Efficiency: VFD control optimizes energy use, reducing operational costs
Industrial Safety: Designed to meet rigorous safety standards with built-in protective features
Smart Automation: Recipe-based controls allow for quick product changeovers
With growing installations across India and a strong global export presence, Meera Industries has established itself as a leader in advanced yarn twisting solutions.
Conclusion: Investing in Smart Twisting Technology
For manufacturers of PP rope, baler twine, or high-tenacity synthetic yarns, Meera’s R-250 Ring Twisting Machine represents more than just an equipment upgrade — it's a strategic investment in quality, productivity, and growth. Garware’s impressive gains are a testament to the value Meera brings to modern yarn processing.
Frequently Asked Questions
Q. What specific features of the R-250 contribute to the 30% higher output?
The productivity gain is driven by several key features: a high spindle speed of up to 6000 RPM, the ability to run at 90 MPM without overheating, and larger package sizes (8-10 kg). This combination allows for longer continuous runs, significantly reducing downtime for doffing and maximizing spindle utilization.
Q. How does the R-250 ensure consistent quality for high-denier PP yarns?
Consistency is achieved through precision engineering. The machine uses a central spindle drive with VFD control for stable speed, anti-patterning systems to prevent winding defects, and ring-balloon control to maintain uniform yarn tension. This results in reliable tensile properties and a flawless surface finish across production lots.
Q. Is the R-250 Ring Twisting Machine suitable for other materials besides polypropylene?
While exceptionally effective for PP rope and baler twine, the R-250's modular design and wide twist range (20 to 1500 TPM) make it adaptable for twisting other synthetic yarns used in industrial applications, such as nylon or polyester, depending on the denier and specifications.
Q. How does this machine improve operator safety and reduce maintenance?
Safety is integral to the design, with magnetic locking ring guards and emergency stop auto-lift functions. Maintenance is minimized through a centralized lubrication system that prevents oil spills and robust electrical components with overload protection, leading to lower breakdown rates and a safer work environment.
Q. Can the R-250 be integrated into an existing production line easily?
Yes, the machine is designed for scalability and integration. Its modular creel design and standardized footprint facilitate installation. Furthermore, the touchscreen HMI with recipe management allows for quick changeovers, making it a flexible addition that can enhance an existing setup without major disruptions.
